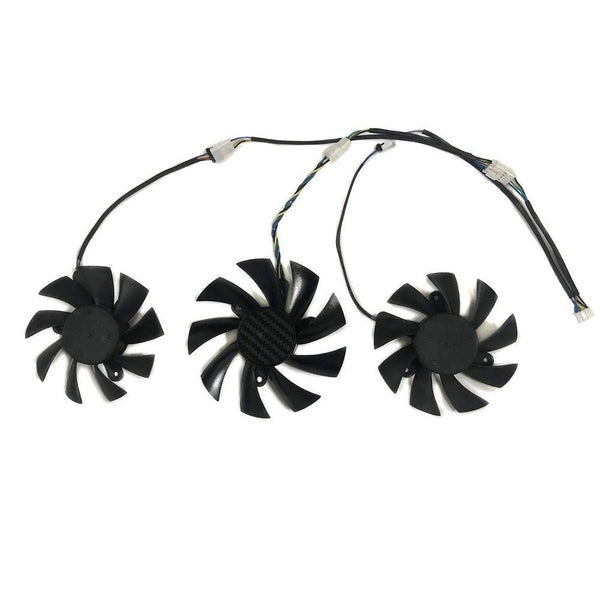

We offer two GPU fan models for the HP OMEN RTX 3070 Ti, 3080, 3090, 3090 Ti GPU Fan Replacement: the original version and a cost-effective alternative.
Original model specifications:
- Model: FD9015U12D
- Fan Dimension: 85mm
- Voltage: DC 12V
- Mounting holes distance: 42mm* 42mm * 42mm
- Power Connector: 4 Pin
- Model: FD8015H12D
- Fan Dimension: 75mm
- Voltage: DC 12V
- Mounting holes distance: 42mm* 42mm * 42mm
- Power Connector: 4 Pin
Alternative model specifications:
- Model: PLA09215B12H
- Fan Diameter: 85mm
- Voltage: DC 12V
- Current: 0.55AMP
- Mounting Holes Distance: 42mm* 42mm * 42mm
- Power Connector: 4 Pin
- Model: PLA08015D12HH
- Fan Diameter: 75mm
- Voltage: DC 12V
- Current: 0.35AMP
- Mounting Holes Distance: 42mm* 42mm * 42mm
- Power Connector: 4 Pin
Compatible graphics cards:
- HP Omen GeForce RTX 3070 Ti
- HP Omen GeForce RTX 3080
- HP Omen GeForce RTX 3090
- HP Omen GeForce RTX 3090 Ti
